背景：
在排查无忧行后台服务日志时，一个请求可能会包含多个执行的sql，经常会遇到SQL语句与对应参数不连续显示，或者参数较多需要逐个匹配的情况。这种情况下，如果需要还原完整SQL语句就会比较耗时。因此，我希望能优化这一流程。
正文：
在平时排查sql执行情况时，对于sql查询参数比较多或者多个sql在同一个请求下执行的时候会比较麻烦，需要查看每个参数的值一一对应检查是否有异常，有时候还需要将查询sql的问号还原android去库里面查询结果，就类似下面的日志：
一个一个参数还原比较麻烦，因此针对这种问题，我找到了一个解决办法，重写MybatisPlus的InnerInterceptor，将sql日志重新组装，那么在查看sql日志时候就可以直接查看赋值好参数的sql了，将上面截图的sql整合之后可以转化为下面的sql：
具体的思路以及实现方案，以无忧行项目为例
实现思路，利用mybatisplus提供的接口InnerInterceptor，重写sql日志，并将重写之后的类注入到sqlSessionFactory中，在执行sql之前捕获到并打印。
解释一下InnerInterceptor类：InnerInterceptor 是 MyBatis-Plus 框架中的一个核心拦截器接口，它是 MyBatis 拦截器机制的扩展，用于在 SQL 执行过程中进行拦截和增强。InnerInterceptor工作原理：InnerInterceptor 通过 MyBatis 的插件机制工作，在以下时机进行拦截：- beforeQuery：查询操作执行前 - beforeUpdate：更新操作执行前 - beforePrepare：SQL 准备阶段
针对查询sql执行的sql重整，使用的是beforeQuery，针对更新sql执行的重整，使用的是beforeUpdate，以下是具体实现：
1.首先，添加依赖，
maven依赖：
<dependency> <groupId>com.baomidou</groupId> <artifactId>mybatis-plus-boot-starter</artifactId> <version>3.4.0</version> </dependency>
或者gradle依赖：
compile("com.baomidou:mybatis-plus-generator:3.4.0")
2.重写InnerInterceptor
package com.cmi.jego.micro.flight.admin.service.config;
import com.baomidou.mybatisplus.extension.plugins.inner.InnerInterceptor;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.collections4.CollectionUtils;
import org.apache.ibatis.executor.Executor;
import org.apache.ibatis.mapping.BoundSql;
import org.apache.ibatis.mapping.MappedStatement;
import org.apache.ibatis.mahttp://www.devze.compping.ParameterMapping;
import org.apache.ibatis.reflection.MetaObject;
import org.apache.ibatis.session.Configuration;
import org.apache.ibatis.session.ResultHandler;
import org.apache.ibatis.session.RowBounds;
import org.apache.ibatis.type.TypeHandlerRegistry;
import Java.sql.SQLException;
import java.text.DateFormat;
import java.util.Date;
import java.util.List;
import java.util.Locale;
import java.util.regex.Matcher;
/**
* sql日志重写
*
* @author zhouxy
* @date 2025年05月08日 11:27
*/
@Slf4j
@org.springframework.context.annotation.Configuration
public class MybatisPlusLogRewrite implements InnerInterceptor {
@Override
public void beforeQuery(Executor executor, MappedStatement ms, Object parameter, RowBounds rowBounds, ResultHandler resultHandler, BoundSql boundSql) throws SQLException {
log.info("beforeQuery");
logInfo(boundSql, ms, parameter);
}
@Override
public void beforeUpdate(Executor executor, MappedStatement ms, Object parameter) throws SQLException {
log.info("beforeUpdate");
BoundSql boundSql = ms.getBoundSql(parameter);
logInfo(boundSql, ms, parameter);
}
private static void logInfo(BoundSql boundSql, MappedStatement ms, Object parameter) {
try {
// 获取到节点的id,即sql语句的id
String sqlId = ms.getId();
// 获取节点的配置
Configuration configuration = ms.getConfiguration();
// 获取到最终的sql语句
String sql = getSql(configuration, boundSql, sqlId);
log.info("完整的sql:{}", sql);
} catch (Exception e) {
log.error("异常:{}", e.getLocalizedMessage(), e);
}
}
// 封装了一下sql语句，使得结果返回完整XML路径下的sql语句节点id + sql语句
public static String getSql(Configuration configuration, BoundSql boundSql, String sqlId) {
return sqlId + ":" + showSql(configuration, boundSql);
}
// 进行？的替换
public static String showSql(Configuration configuration, BoundSql boundSql) {
// 获取参数
Object parameterObject = boundSql.getParameterObject();
List<ParameterMapping> parameterMappings = boundSql.getParameterMappings();
// log.info("boundSql:{}",boundSql.getSql());
// sql语句中多个空格都用一个空格代替
String sql = boundSql.getSql().replaceAll("[\\s]+", " ");
if (CollectionUtils.isNotEmpty(parameterMappings) && parameterObject != null) {
// 获取类型处理器注册器，类型处理器的功能是进行java类型和数据库类型的转换
TypeHandlerRegistry typeHandlerRegistry = configuration.getTypeHandlerRegistry();
// 如果根据parameterObject.getClass(）可以找到对应的类型，则替换
if (typeHandlerRegistry.hasTypeHandler(parameterObject.getClass())) {
sql = sql.replaceFirst("\\?",
Matcher.quoteReplacement(getParameterValue(parameterObject)));
} else {
// MetaObject主要是封装了originalObject对象，提供了get和set的方法用于获取和设置originalObject的属性值,主要支持对JavaBean、Collection、Map三种类型对象的操作
MetaObject metaObject = configuration.newMetaObject(parameterObject);
for (ParameterMapping parameterMapping : parameterMappings) {
String propertyName = parameterMapping.getProperty();
if (metaObject.hasGetter(propertyName)) {
Object obj = metaObject.getValue(propertyName);
sql = sql.replaceFirst("\\?",
Matcher.quoteReplacement(getParameterValue(obj)));
} else if (boundSql.hasAdditionalParameter(propertyName)) {
// 该分支是动态sql
Object obj = boundSql.getAdditionalParameter(propertyName);
sql = sql.replaceFirst("\\?",
Matcher.quoteReplacement(getParameterValue(obj)));
} else {
// 打印出缺失，提醒该参数缺失并防止错位
sql = sql.replaceFirst("\\?", "缺失");
}
}
}
}
return sql;
}
// 如果参数是String，则添加单引号， 如果是日期，则转换为时间格式器并加单引号； 对参数是null和不是null的情况作了处理
private static String getParameterValue(Object obj) {
String value;
if (obj instanceof String) {
value = "'" + obj.toString() + "'";
} else if (obj instanceof Date) {
DateFormat formatter = DateFormat.getDateTimeInstance(DateFormat.DEFAULT,
DateFormat.DEFAULT, Locale.CHINA);
value = "'" + formatter.format(new Date()) + "'";
} else {
if (obj != null) {
value = obj.toString();
} else {
value = "";
}
}
return value;
}
}
3.将当前的重写类MybatisPlusLogRewrite注入到sqlSessionFactory中。
package com.cmi.jego.micro.flight.admin.service.config;
import com.baomidou.mybatisplus.extension.plugins.MybatisPlusInterceptor;
import org.apache.ibatis.session.SqlSessionFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import javax.annotation.PostConstruct;
import java.util.List;
/**
* @author zhouxy
* @date 2025年05月09日 15:58
*/
@Configuration
public class MyBatisPlusConfig {
@Autowired
private List<SqlSessionFactory> sqlSessionFactoryList;
@Autowired
private MybatisPlusLogRewrite myInnerInterceptor;
/**
* 添加Mybatis拦截器
*
* @author zhouxy
* @date 2025/5/15 16:29
*/
@PostConstruct
public void addMybatisInterceptor() {
for (SqlSessionFactory sqlSessionFactory :编程客栈 sqlSessionFactoryList) {
org.apache.ibatis.session.Configuration configuration = sqlSessionFactory.getConfiguration();
//将sql拦截器添加到MybatisPlusInterceptor拦截器链
MybatisPlusInterceptor mybatisPlusInterceptor = new MybatisPlusInterceptor();
mybatisPlusInterceptor.addInnerInterceptor(myInnerInterceptor);
configuration.addInterceptor(mybatisPlusInterceptor);
}
}
}

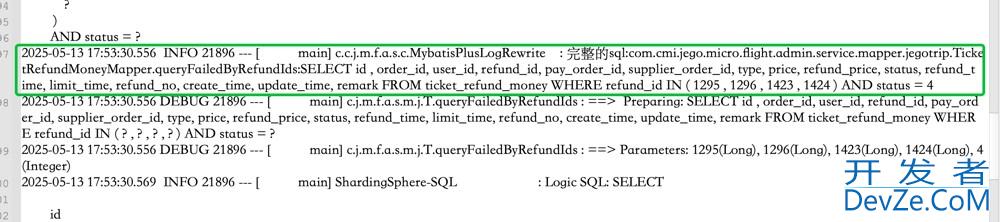

关闭其他sql打印日志，执行查询sql，只打印当前重写之后的sql日志如下：
2025-05-14 18:03:01.353 INFO 34718 --- [ main] c.c.j.m.f.a.service.handler.LogHandler : function:[OrderRefundServiceImpl.queryOrderListStatusCount], request: {"lang":"zh_CN","pageNum":1,"pageSize":10}
2025-05-14 18:03:01.385 INFO 34718 --- [ main] c.c.j.m.f.a.s.c.MybatisPlusLogRewrite : beforeQuery2025-05-14 18:03:01.387 INFO 34718 --- [ main] c.c.j.m.f.a.s.c.MybatisPlusLogRewrite : 完整的sql:com.cmi.jego.micro.flight.admin.service.mapper.jegotrip.TicketRefundMapper.queryListStatusCount:select distinct(tr.id) as refundId, tr.status from ticket_refund tr left join ticket_order td on tr.order_id = td.order_id left join ticket_passenger tp on tr.order_id = tp.order_id left join ticket_order_detail tod on tr.order_id = tod.order_id WHERE ( td.search_channel in ( 'hbgj-api-domestic-custom' ) or (td.order_source is null and td.search_channel is null) or td.order_source = '0' )2025-05-14 18:03:01.395 WARN 34718 --- [ main] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/ticket_jegotrip?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8, version : 1.2.5, lastPacketReceivedIdleMillis : 2632612025-05-14 18:03:01.395 WARN 34718 --- [ main] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/ticket_jegotrip?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8, version : 1.2.5, lastPacketReceivedIdleMillis : 2639122025-05-14 18:03:01.396 WARN 34718 --- [ main] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/ticket_jegotrip?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8, version : 1.2.5, lastPacketReceivedIdleMillis : 2639332025-05-14 18:03:01.396 WARN 34718 --- [ main] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/ticket_jegotrip?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8, version : 1.2.5, lastPacketReceivedIdleMillis : 2639582025-05-14 18:03:01.396 WARN 34718 --- [ main] c.a.druid.pool.DruidAbstractDataSource : discard long time none received connection. , jdbcUrl : jdbc:mysql://localhost:3306/ticket_jegotrip?useUnicode=true&characterEncoding=UTF-8&zeroDateTimeBehavior=convertToNull&serverTimezone=GMT%2B8, version : 1.2.5, lastPacketReceivedIdleMillis : 2639862025-05-14 18:03:01.851 INFO 34718 --- [ main] c.c.j.m.f.a.s.c.MybatisPlusLogRewrite : beforeQuery2025-05-14 18:03:01.851 INFO 34718 --- [ main] c.c.j.m.f.a.s.c.MybatisPlusLogRewrite : 完整的sql:com.cmi.jego.micro.flight.admin.service.mapper.jegotrip.TicketRefundMoneyMapper.queryFailedByRefundIds:编程客栈SELECT id , order_id, user_id, refund_id, pay_order_id, supplier_order_id, type, price, refund_price, status, refund_time, limit_time, refund_no, create_time, update_time, remark FROM ticket_refund_money WHERE refund_id IN ( 1295 , 1296 , 1423 , 1424 ) AND status = 42025-05-14 18:03:01.871 INFO 34718 --- [ main] c.c.j.m.f.a.service.handler.LogHandler : class:[OrderRefundServiceImpl.qujavascripteryOrderListStatusCount] response: {"bizCode":0,"bizMsg":"SUCCESS","data":{"statusCounts":[{"count":1,"status":-1,"statusDesc":"已取消"},{"count":2,"status":3,"statusDesc":"已退票退款"},{"count":1,"status":4,"statusDesc":"退票异常"}]},"rpcCode":0,"rpcmsg":"SUCCESS"}, cost: 521,2025-05-14 18:03:01.876 INFO 34718 --- [ main] c.c.j.m.f.a.s.s.OrderRefundServiceTest : {"bizCode":0,"bizMsg":"SUCCESS","data":{"statusCounts":[{"count":1,"status":-1,"statusDesc":"已取消"},{"count":2,"status":3,"statusDesc":"已退票退款"},{"count":1,"status":4,"statusDesc":"退票异常"}]},"rpcCode":0,"rpcMsg":"SUCCESS"}
性能评估方面
重写InnerInterceptor类其实是在SqlSessionFactory中添加了拦截器，那么性能如何呢？下面是我这边实际测试的时长对比

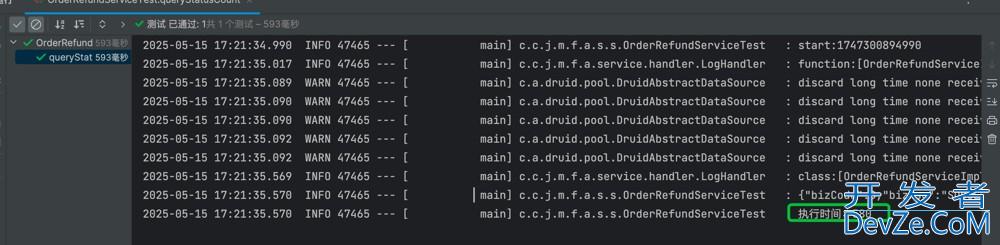

不添加sql重写：
添加sql重写：
根据测试时间可以看出，加了sql重写会比未加的时候的时间长了11ms。
因为涉及到拦截以及反射，性能比不加的时候会稍微耗时一些，如果是访问量不高的情况下，用户对于加没加sql重写的主观感应时长其实差不多，因此这种sql重写方案适合后台访问并发量不高的情况使用。如果是并发量较高且比较注重性能的情况下，不建议加。到此这篇关于使用MybatisPlus实现sql日志打印优化的文章就介绍到这了,更多相关MybatisPlus sql日志打印内容请搜索编程客栈(www.devze.com)以前的文章或继续浏览下面的相关文章希望大家以后多多支持编程客栈(www.devze.com)！
